Sanding Machine 630

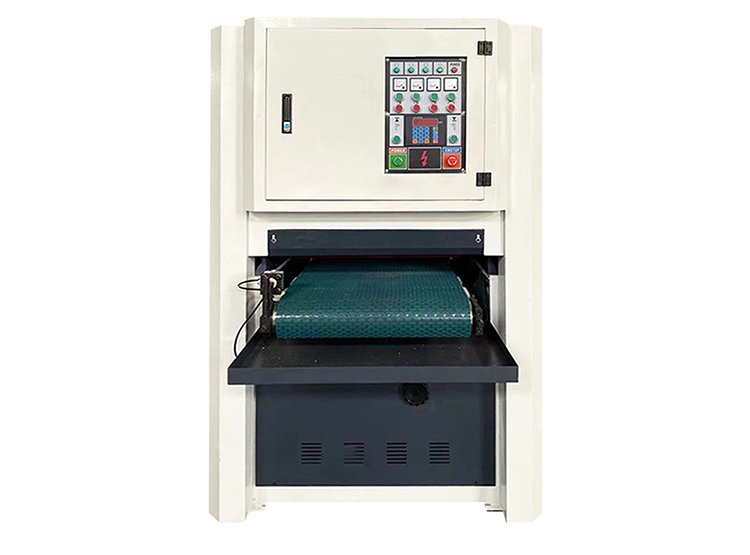

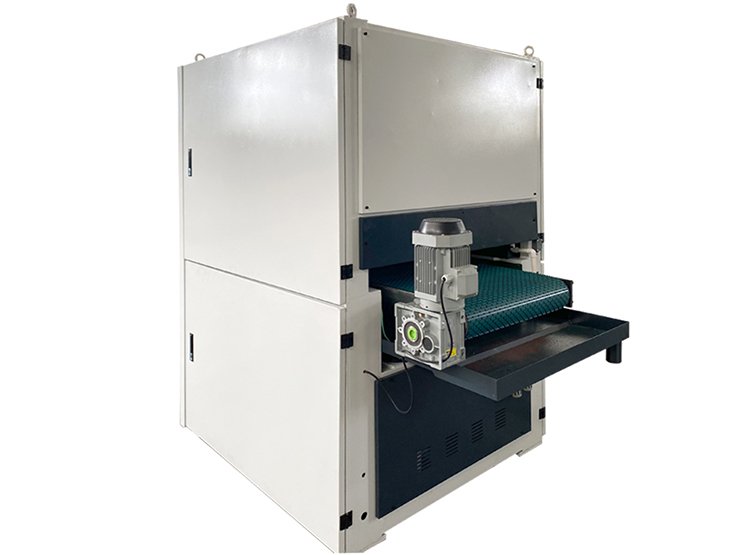

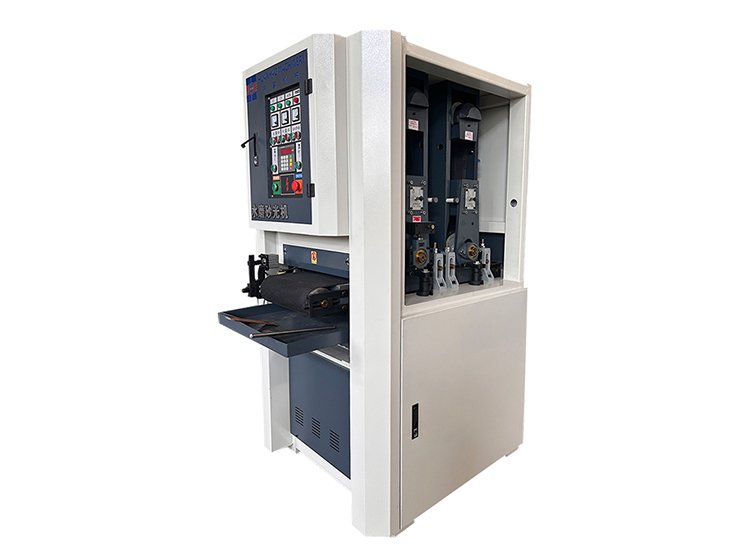

Metal Sander 630

Maximum processing width

630mm

Minimum processing length

300mm

Processing thickness

0-110mm

Total power

17kw

The first sanding frame motor power

7.5kw

The second sanding frame motor power

7.5kw

Conveyor motor power

1.1kw

Sanding belt size

650*1900mm

Overall dimension

1800*1200*2100mm

Weight

2000kg


Inquire Now
Product Details



R-R400mmR-R630mmR-R1000mmR-R1300mmR-R1500mm
Maximum processing width400mm630mm1000mm1300mm1500mm
Minimum processing length300mm300mm300mm300mm300mm
Processing thickness0-110mm0-110mm0-110mm0-110mm0-110mm
The first sand frame motor power5.5kw7.5kw11kw22kw22kw
Second sand frame motor power5.5kw7.5kw11kw22kw22kw
Conveying motor power1.1kw1.1kw1.5kw4kw4kw
Abrasive belt size420*1900mm650*1900mm1020*2020mm1320*2200mm1320*2200mm
Overall dimensions1000*1600*2100mm1800*1200*2100mm1900*1600*2100mm2700*2100*2100mm2700*2100*2100mm
Weight1500kg2000kg2500kg3500kg3500kg
Customization: We can customize sizes, styles and colors according to your requirements

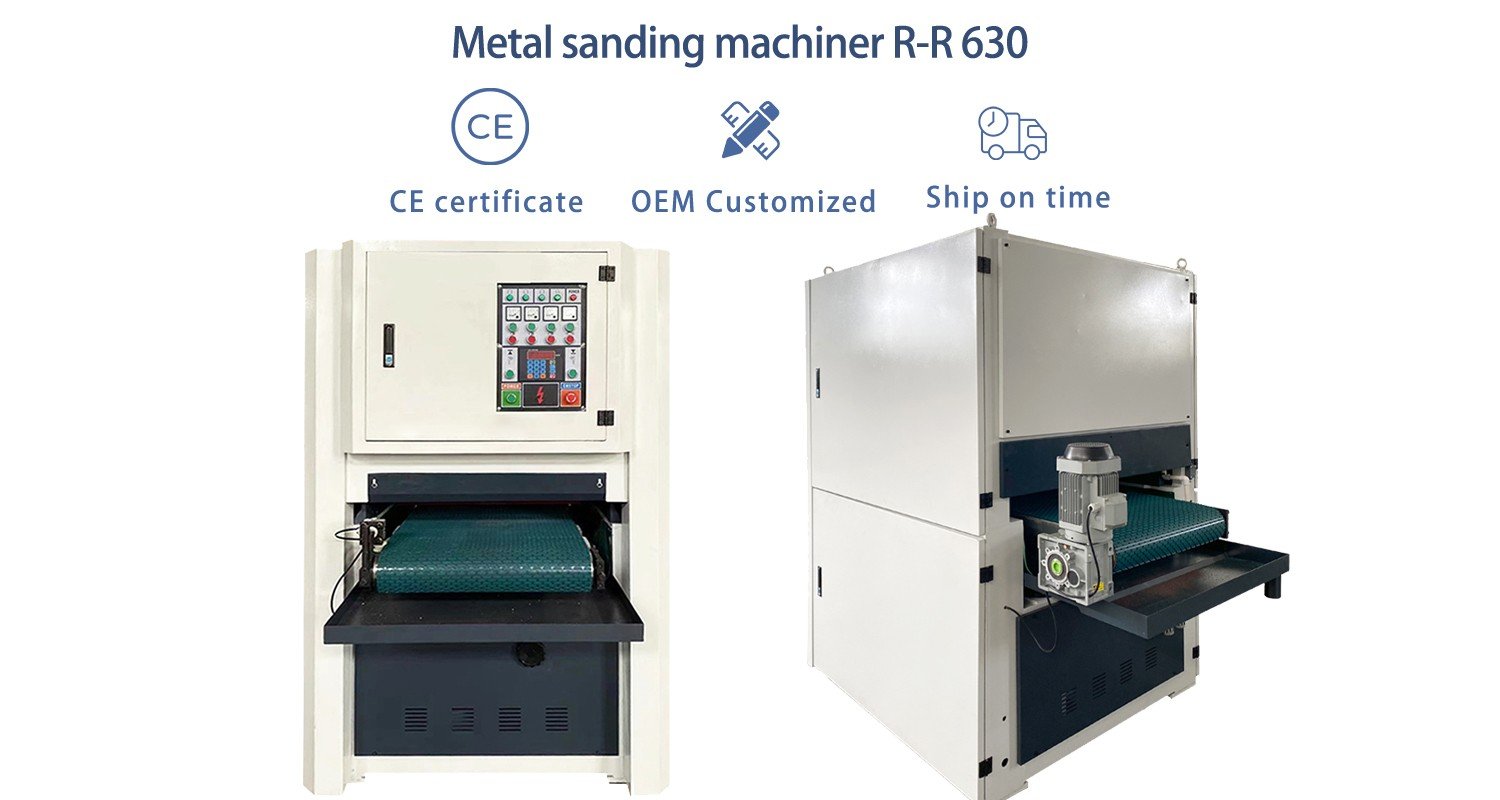

Product features_R-R 630

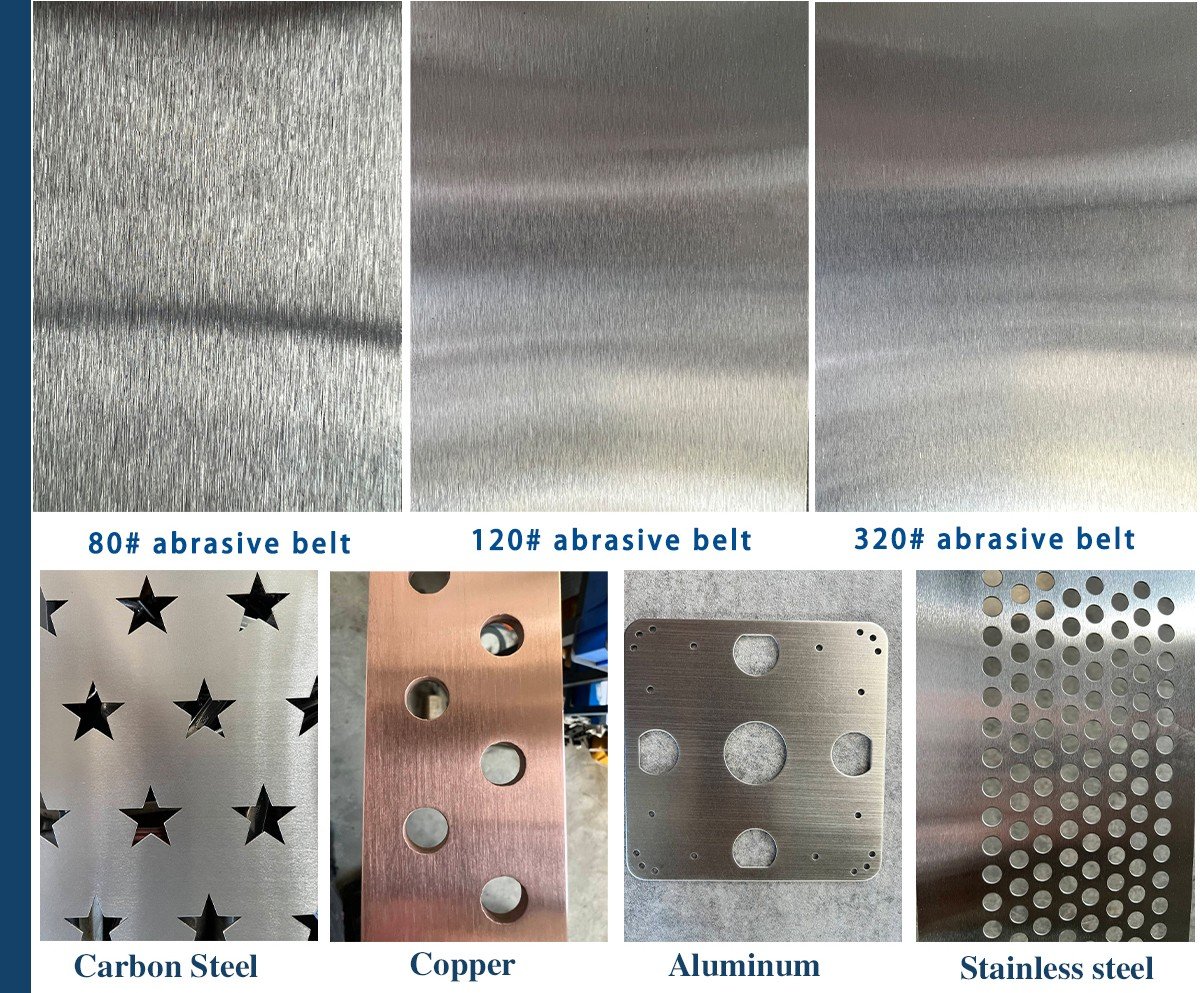

  Applicable metals:Stainless steel, aluminum plate, cold plate, carbon steel. coatedworkpiece, galvanized plate Economical model to meet the needs of customers,

withsimple structure, low failure rate and high cost performance

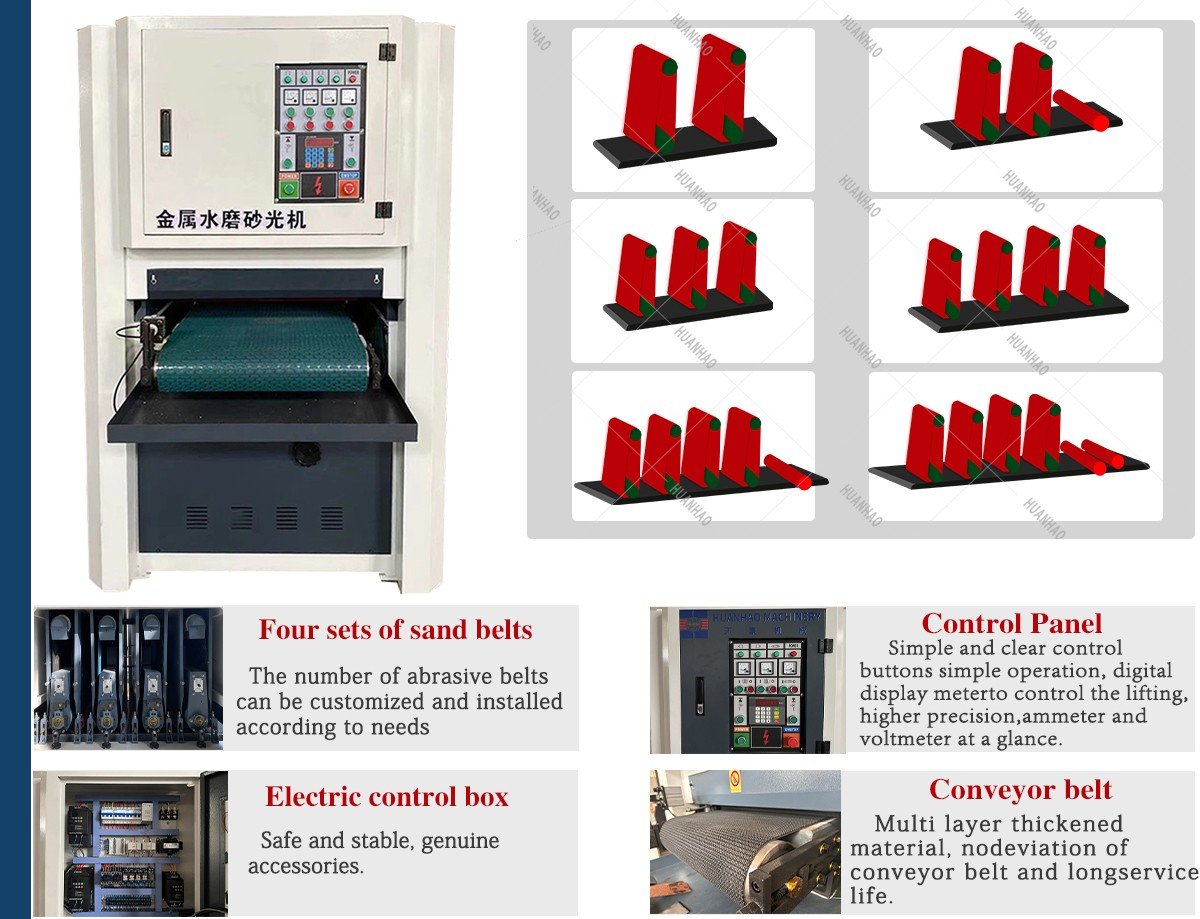

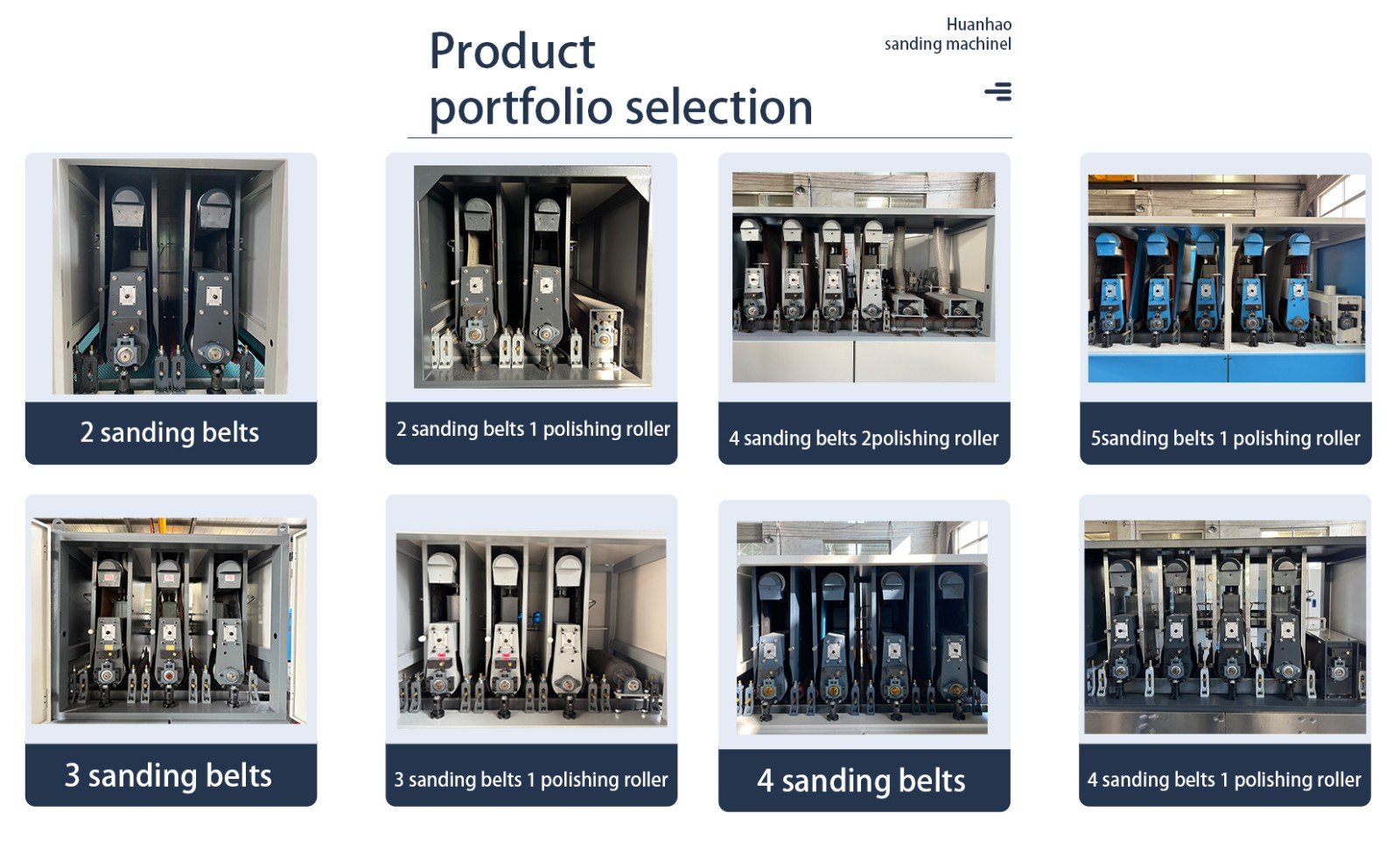

630 metal sander combination options, can be customized as required


6

7


详情内容4

证书

   630 metal sanding machine, specializing in processing large and small metal parts, surface drawing

and polishing, surface treatment expert, Huanhao China high-quality manufacturer, metal sanding

machine manufacturer
